| DN10 (3/8 ") | DN15 (1/2 ") | DN20 (3/4 ") | DN25 (1 ") | DN40 (1-1/2 ") |
| DN50 (2 ") | DN80 (3 ") | DN100 (4 ") | DN125 (5 ") | DN150 (6 ") |
| DN200 (8 ") | DN250 (10 ") | DN300 (12 ") | DN350 (14 ") | DN400 (16 ") |
| DN450 (18 ") | DN500 (20 ") | DN550 (22 ") | DN600 (24 ") |

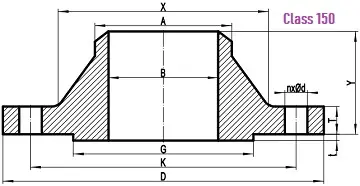

| مقاس | D | T | G | t |
| 1/2 " | 90 | 9.6 | 34.9 | 2.0 |
| 3/4 " | 100 | 11.2 | 42.9 | 2.0 |
| 1 " | 110 | 12.7 | 50.8 | 2.0 |
| 1-1/4 " | 115 | 14.3 | 63.5 | 2.0 |
| 1-1/2 " | 125 | 15.9 | 73.0 | 2.0 |
| 2 " | 150 | 17.5 | 92.1 | 2.0 |
| 2-1/2 " | 180 | 20.7 | 104.8 | 2.0 |
| 3 " | 190 | 22.3 | 127.0 | 2.0 |
| 3-1/2 " | 215 | 22.3 | 139.7 | 2.0 |
| 4 " | 230 | 22.3 | 157.2 | 2.0 |
| 5 " | 255 | 22.3 | 185.7 | 2.0 |
| 6 " | 280 | 23.9 | 215.9 | 2.0 |
| 8 " | 345 | 27.0 | 269.9 | 2.0 |
| 10 " | 405 | 28.6 | 323.8 | 2.0 |
| 12 " | 485 | 30.2 | 381.0 | 2.0 |
| 14 " | 535 | 33.4 | 412.8 | 2.0 |
| 16 " | 595 | 35.0 | 469.9 | 2.0 |
| 18 " | 635 | 38.1 | 533.4 | 2.0 |
| 20 " | 700 | 41.3 | 584.2 | 2.0 |
| 22 " | 750 | 44.5 | 641.4 | 2.0 |
| 24 " | 815 | 46.1 | 692.2 | 2.0 |
